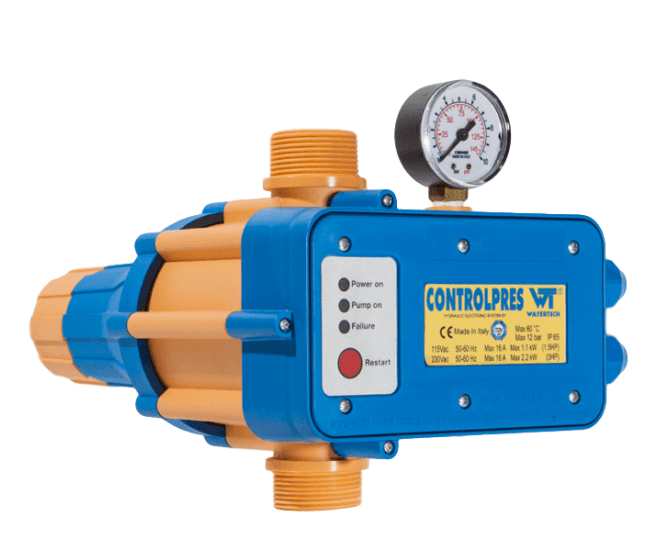

Watertech Controlpress Electronic Pressure Switch

The 230v Presscontrol is a electronic pressure switch and protection device.

Can be fitted to almost any pump with an outlet pressure of 2.3 bar minimum to ten bar maximum with a flow rate of between 40-200 litres per min.

The presscontrol will turn off in the case of no water to protect the pump from dry running.

Suitable for most water systems from well, tank or low pressure mains.

Voltage - 230v

Inlet/Outlet - 1"1/4 x 1"1/4

Max kW - 1.1/2.2

Max Amps - 16

Please see downloads for data sheet
