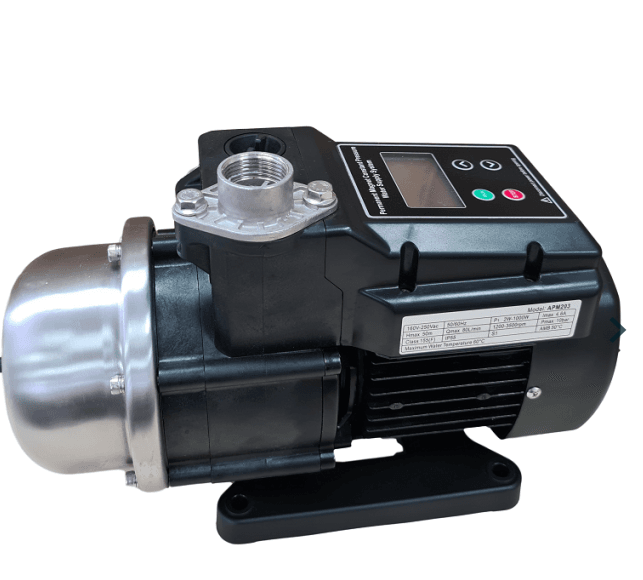

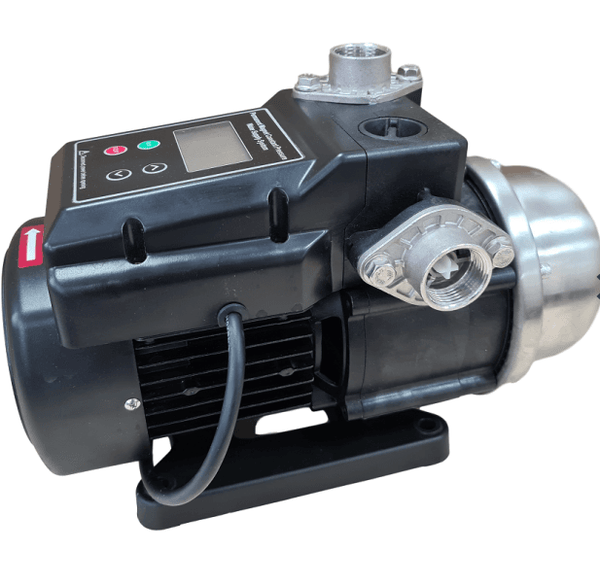

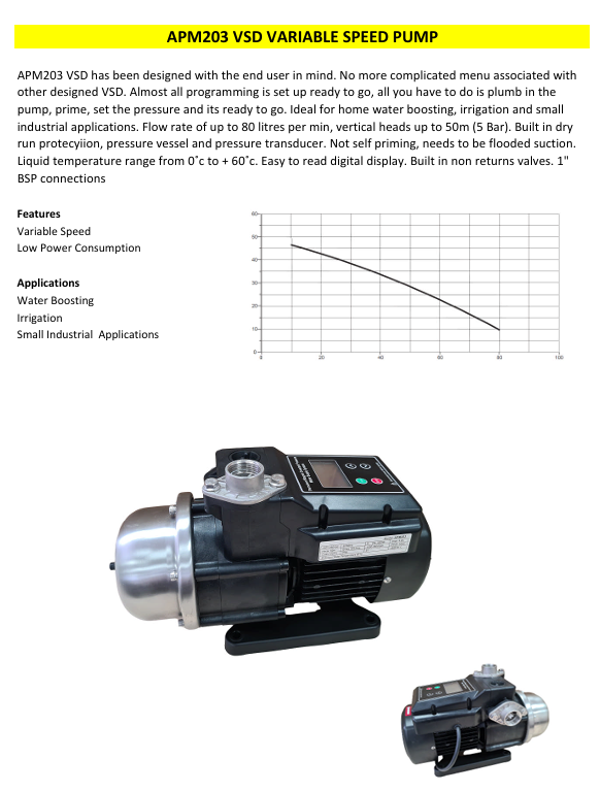

APM203 VSD Variable speed drive pump (230v)

Inlet/Outlet: 1" x 1"

LM/HM: 80/50

Kw: 0.8

Amp: 4.6

H x W x L: 240mm x 183mm x 404mm

Kg: 6.6

APM203 is a small compact variable speed booster set and is small and completely integrated.

APM203 uses the most up to date technology and user friendly to create constant pressure according to the system demands and thus an optimization of energy consumption.

For use in domestic systems, gardening and small industrial applications

OPERATING RANGE: flow rate up to 80l/min, head up to 50m (5.0 Bar)

PUMPED LIQUID: clean, free from solids or abrasive substances, non viscous, non aggressive, non crystallized and not chemically neutral

LIQUID TEMPERATURE RANGE: from 0°C to + 60°C

NOT Self Priming, needs to flooded suction
